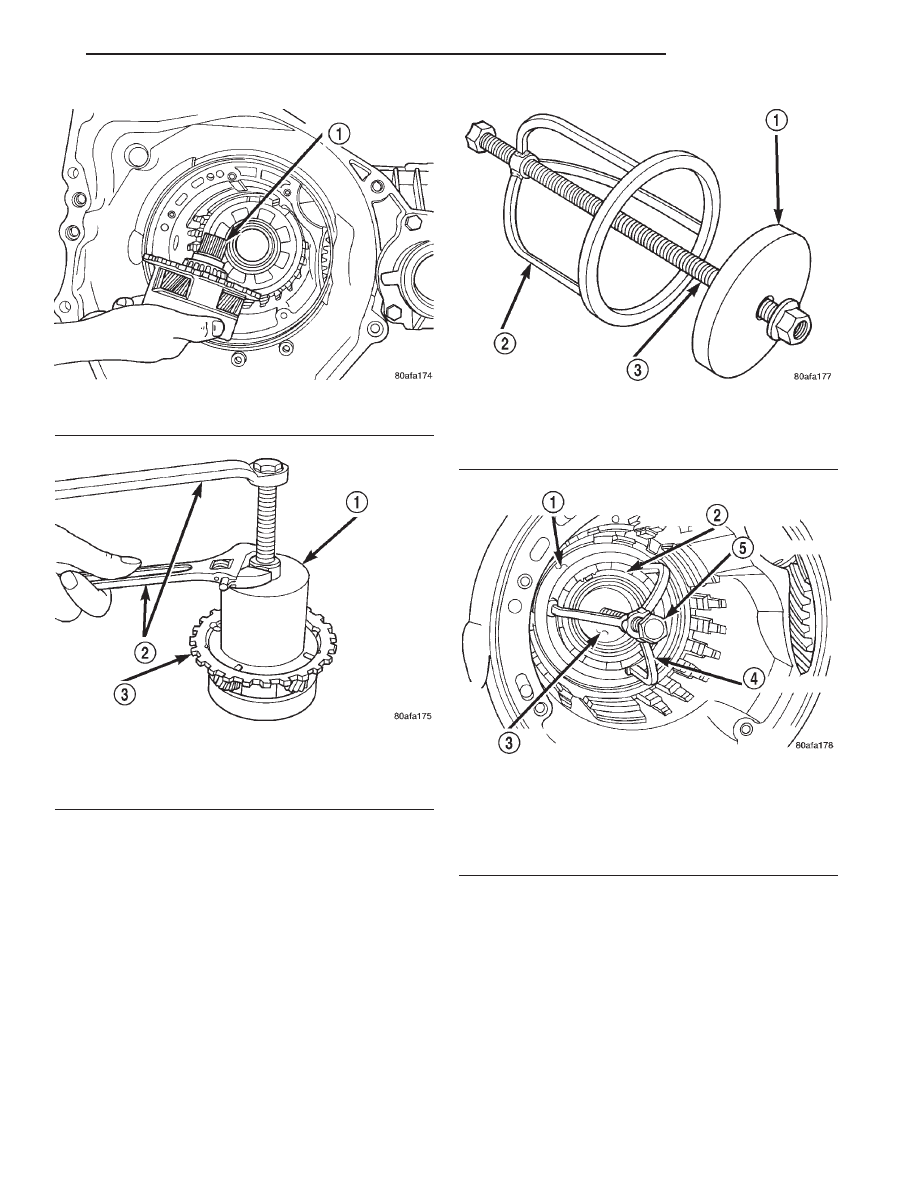

Fig. 204 Remove Rear Carrier Assembly

1 – REAR CARRIER ASSEMBLY

Fig. 205 Remove Rear Carrier Bearing Cone

1 – TOOL 5048 WITH JAWS 5048–3 AND BUTTON 6055
2 – WRENCHES
3 – REAR CARRIER ASSEMBLY

Fig. 206 Low/Reverse Spring Compressor Tool

1 – TOOL 6057
2 – TOOL 5059
3 – TOOL 5058–3

Fig. 207 Compressor Tool in Use

1 – LOW/REVERSE CLUTCH RETURN SPRING
2 – SNAP RING (INSTALL AS SHOWN)
3 – TOOL 6057
4 – TOOL 5059
5 – TOOL 5058–3

JX

TRANSAXLE

21 - 75

DISASSEMBLY AND ASSEMBLY (Continued)

CAUTION: When installing, be sure guide bracket
and split sleeve touch the rear of the transaxle
case.

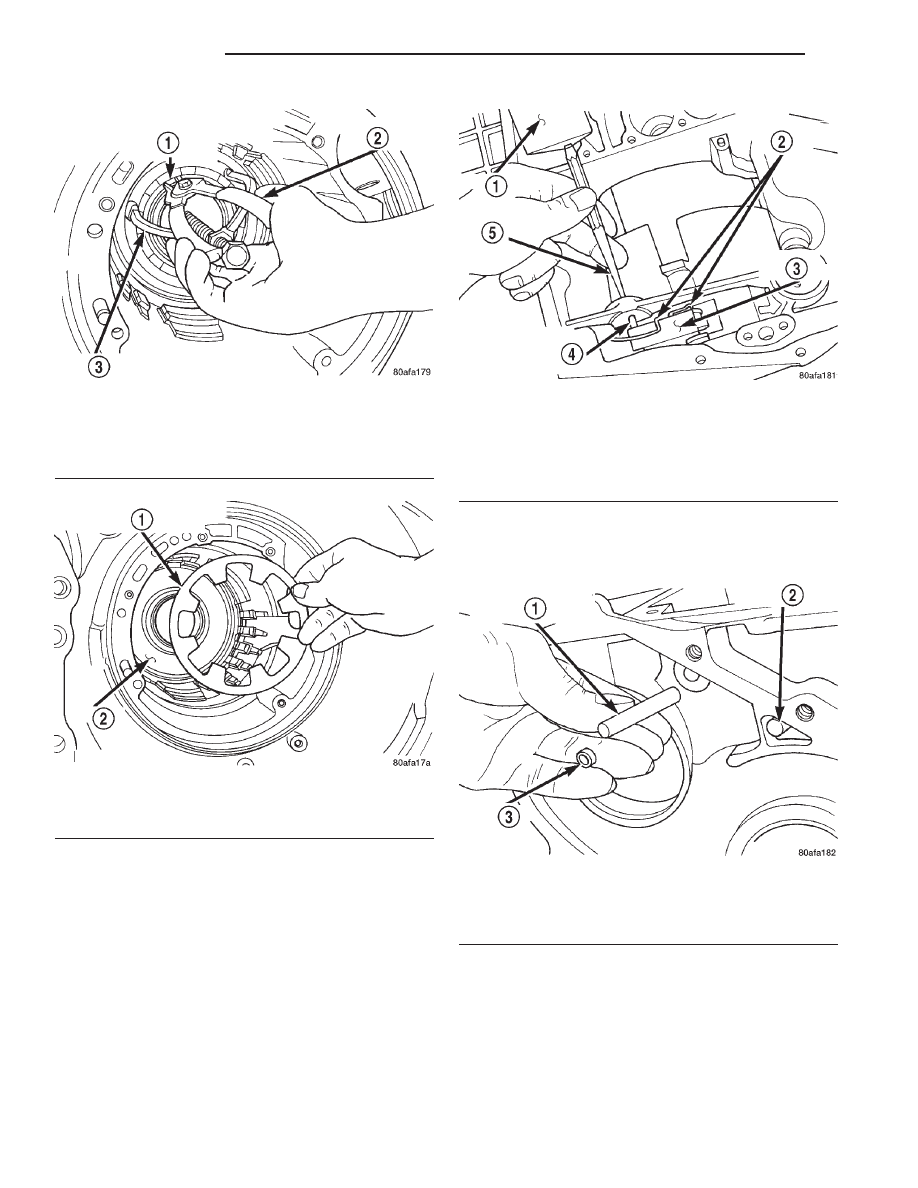

Fig. 208 Remove Snap Ring

1 – SNAP RING OPENING MUST BE BETWEEN SPRING

LEVERS (AS SHOWN)

2 – SNAP RING PLIERS
3 – TOOL 6057

Fig. 209 Low/Reverse Piston Return Spring

1 – LOW/REVERSE PISTON RETURN SPRING
2 – PISTON

Fig. 210 Drive Out Anchor Shaft

1 – HAMMER
2 – ANTIRATCHET SPRING
3 – GUIDE BRACKET
4 – PARK SPRAG GUIDE BRACKET ANCHOR SHAFT
5 – DRIFT

Fig. 211 Remove Anchor Shaft and Plug

1 – GUIDE BRACKET ANCHOR SHAFT
2 – PIVOT SHAFT
3 – ANCHOR SHAFT PLUG

21 - 76

TRANSAXLE

JX

DISASSEMBLY AND ASSEMBLY (Continued)

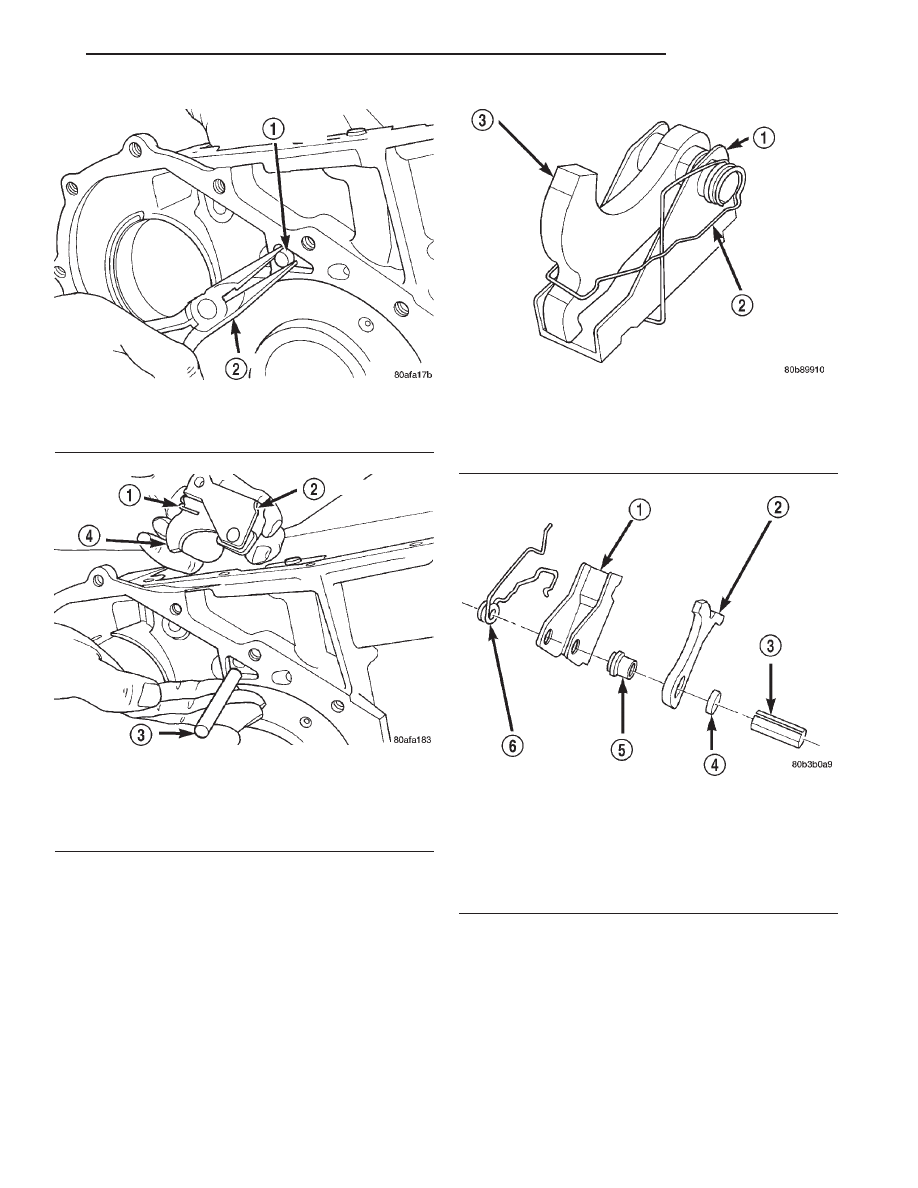

Fig. 212 Remove Guide Bracket Pivot Shaft

1 – GUIDE BRACKET PIVOT SHAFT
2 – PLIERS

Fig. 213 Pivot Shaft and Guide Bracket

1 – ANTIRACHET SPRING
2 – GUIDE BRACKET
3 – PIVOT SHAFT
4 – PAWL

Fig. 214 Guide Bracket

1 – GUIDE BRACKET
2 – ANTIRATCHET SPRING (MUST BE ASSEMBLED AS

SHOWN)

3 – PAWL

Fig. 215 Guide Bracket Disassembled

1 – GUIDE BRACKET
2 – PAWL
3 – SPLIT SLEEVE
4 – SPACER
5 – STEPPED SPACER
6 – ANTIRATCHET SPRING

JX

TRANSAXLE

21 - 77

DISASSEMBLY AND ASSEMBLY (Continued)

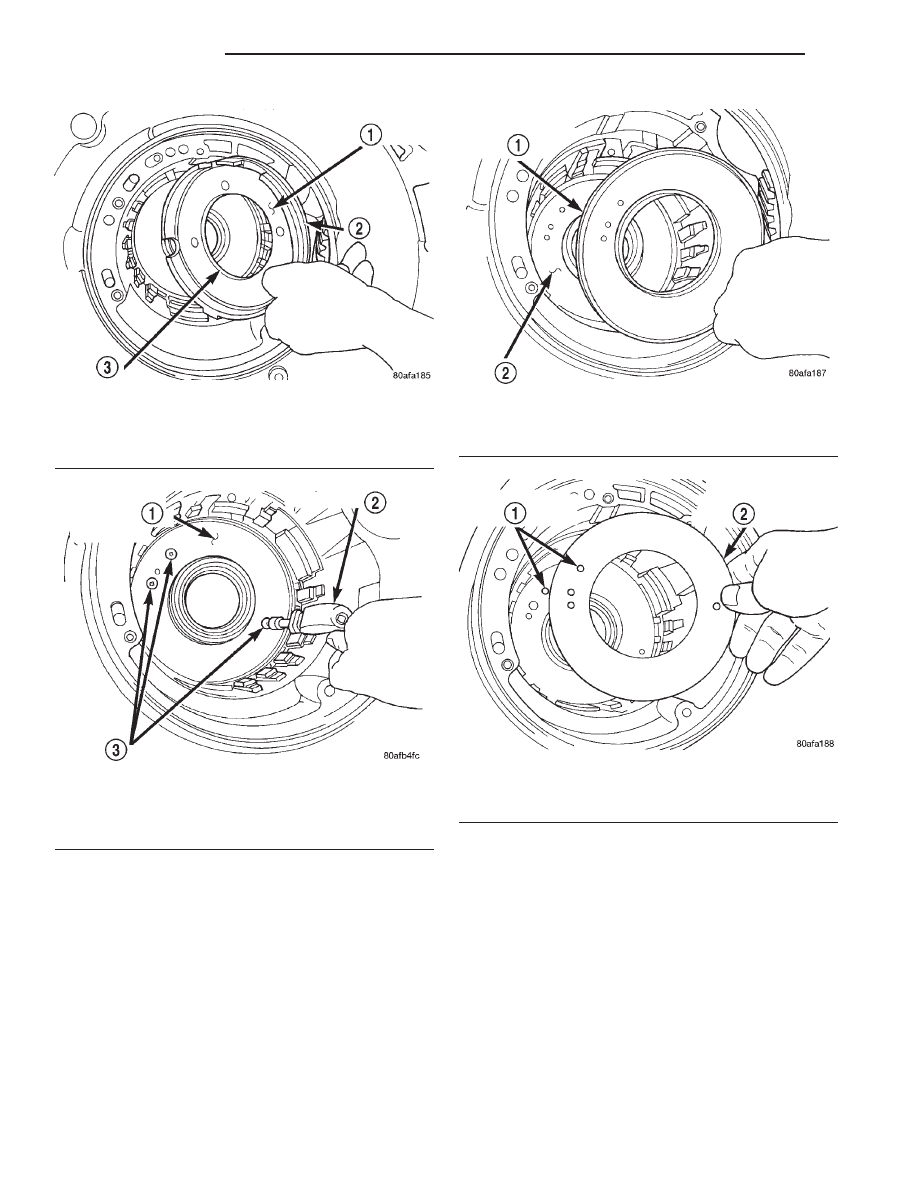

Fig. 216 Remove Low/Reverse Clutch Piston

1 – LOW/REVERSE CLUTCH PISTON
2 – LIP SEAL
3 – LIP SEAL

Fig. 217 Remove Piston Retainer Attaching Screws

1 – LOW/REVERSE CLUTCH PISTON RETAINER
2 – SCREWDRIVER
3 – TORX-LOC SCREWS

Fig. 218 Remove Piston Retainer

1 – LOW/REVERSE CLUTCH PISTON RETAINER
2 – GASKET

Fig. 219 Remove Piston Retainer Gasket

1 – GASKET HOLES MUST LINE UP
2 – LOW/REVERSE CLUTCH PISTON RETAINER GASKET

21 - 78

TRANSAXLE

JX

DISASSEMBLY AND ASSEMBLY (Continued)
