FCM-RIGHT LOWBEAM OUTPUT CIRCUIT OPEN (CONTINUED)

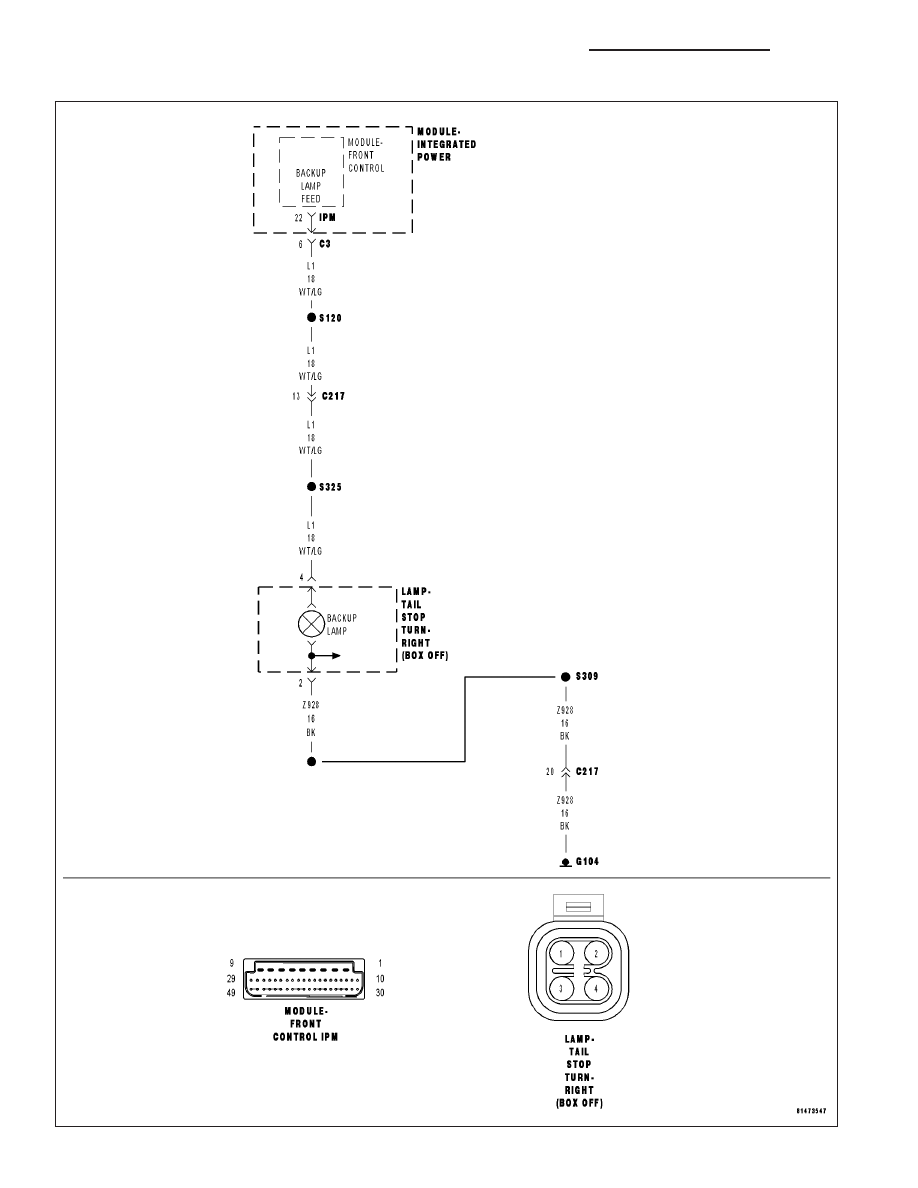

For the Exterior Lighting system circuit diagram (Refer to 8 - ELECTRICAL/LAMPS/LIGHTING - EXTERIOR -
SCHEMATICS AND DIAGRAMS).

For a complete wiring diagram Refer to Section 8W.

•

When Monitored:
With the ignition on

•

Set Condition:
The FCM detects an open condition

Possible Causes

RIGHT LOWBEAM OUTPUT CIRCUIT OPEN

POWER DISTRIBUTION CENTER

FRONT CONTROL MODULE

1.

INTERMITTENT CONDITION

Turn the ignition on.

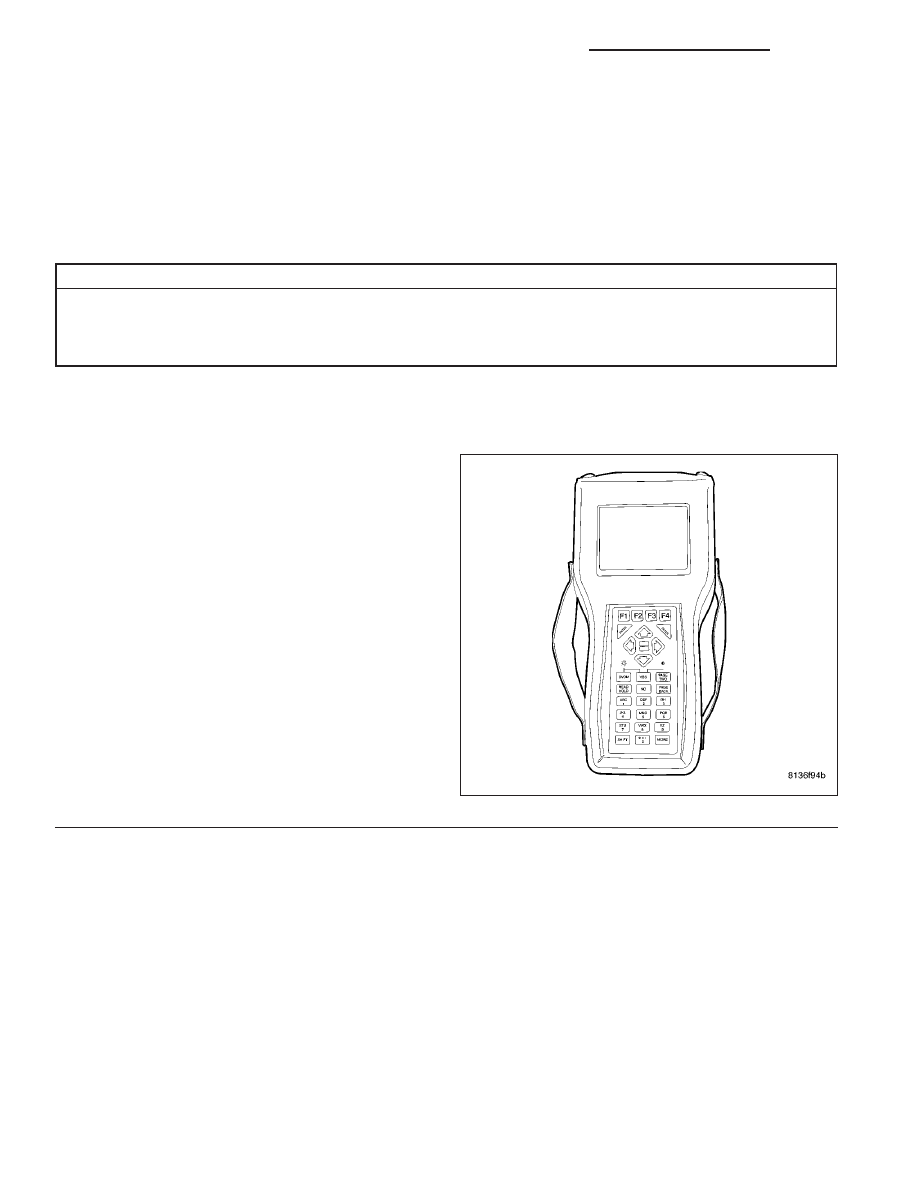

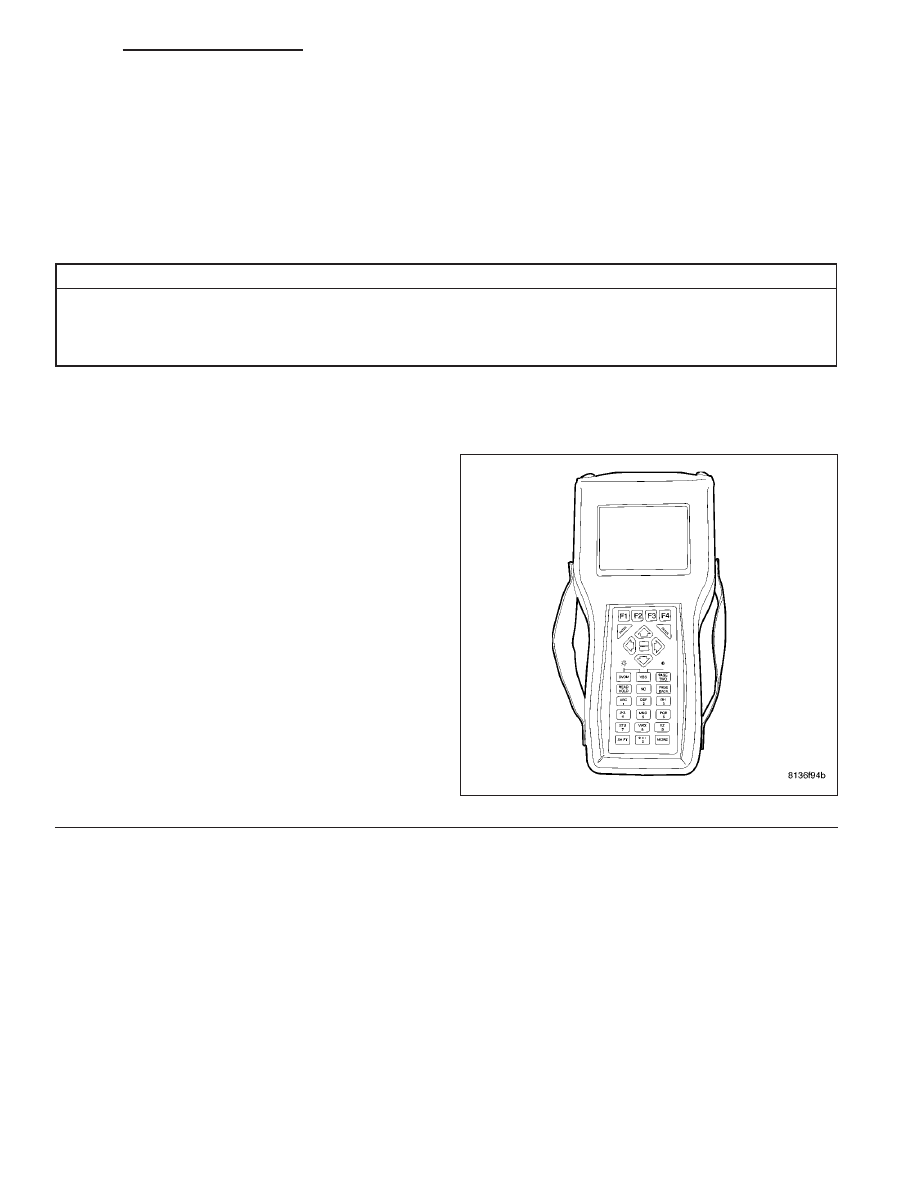

With the DRBIII

T

, clear all FCM DTC’s.

Actuate the Lowbeam headlamps.

With the DRBIII

T

, read the DTC information.

Does the DRBIII

T

read: Right Lowbeam Output

Circuit Open?

Yes

>> Go To 2

No

>> The condition that caused the symptom is

currently not present. Inspect the related
wiring for a possible intermittent condition.
Look for any chafed, pierced, pinched, or
partially broken wires.

Perform BODY VERIFICATION TEST -
VER 1.

8L - 86

LAMPS/LIGHTING - EXTERIOR - ELECTRICAL DIAGNOSTICS

DR/DH

FCM-RIGHT LOWBEAM OUTPUT CIRCUIT OPEN (CONTINUED)

2.

RIGHT LOWBEAM OUTPUT CIRCUIT OPEN

Turn the ignition off.

Disconnect the IPM C7 harness connector

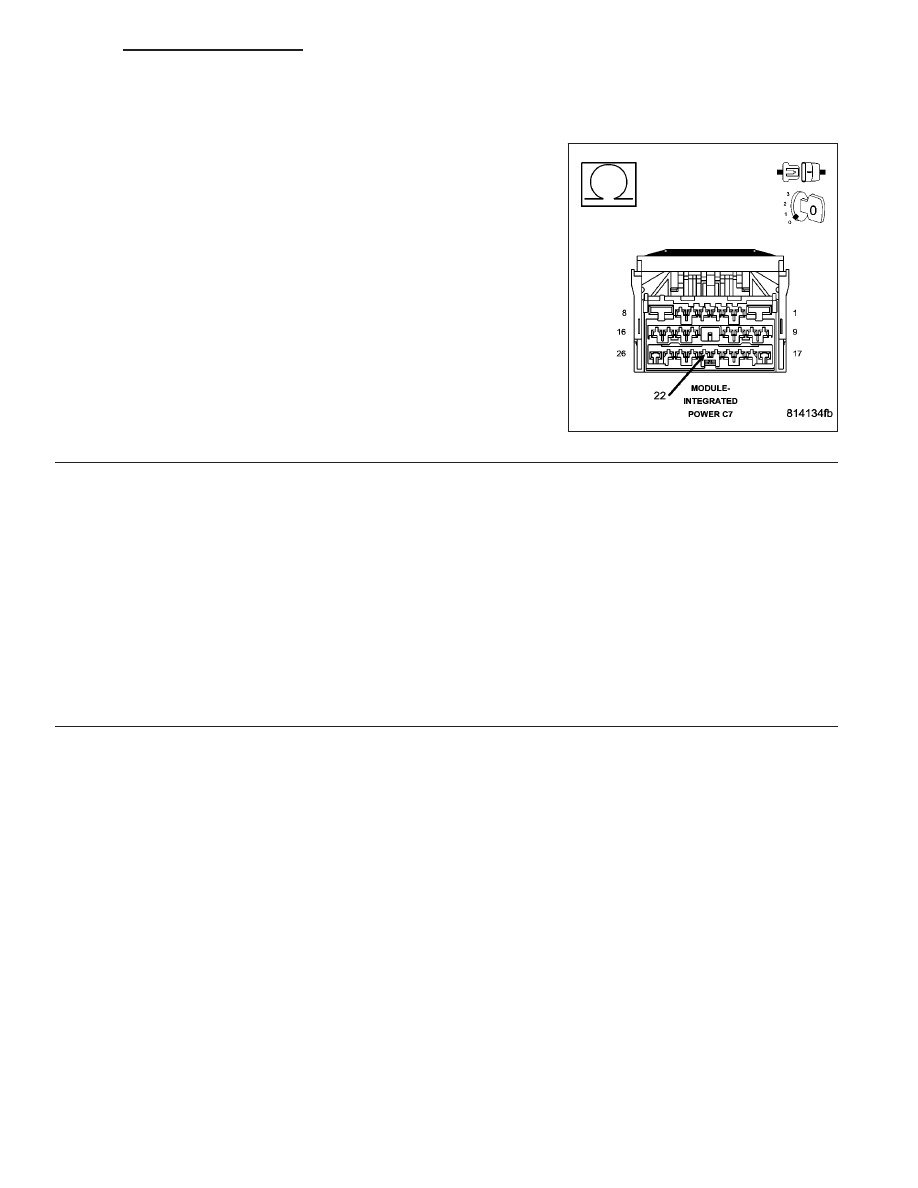

Measure the resistance of the Right Lowbeam Output circuit.

Is the resistance above 5.0 ohms?

Yes

>> Repair the Right Lowbeam Output circuit for an open.

Perform BODY VERIFICATION TEST - VER 1.

No

>> Go To 3

3.

FRONT CONTROL MODULE

Turn the ignition off

Disconnect the FCM from the IPM.

Disconnect the IPM C7 harness connector.

Measure the resistance of the Right Lowbeam Output circuit.

Is the resistance above 5.0 ohms?

Yes

>> Replace the Power Distribution Center.

Perform BODY VERIFICATION TEST - VER 1.

No

>> Replace the Front Control Module.

Perform BODY VERIFICATION TEST - VER 1.

DR/DH

LAMPS/LIGHTING - EXTERIOR - ELECTRICAL DIAGNOSTICS

8L - 87

FCM-RIGHT STOP LAMP OUTPUT CIRCUIT LOW

8L - 88

LAMPS/LIGHTING - EXTERIOR - ELECTRICAL DIAGNOSTICS

DR/DH

FCM-RIGHT STOP LAMP OUTPUT CIRCUIT LOW (CONTINUED)

For the Exterior Lighting system circuit diagram (Refer to 8 - ELECTRICAL/LAMPS/LIGHTING - EXTERIOR -
SCHEMATICS AND DIAGRAMS).

For a complete wiring diagram Refer to Section 8W.

•

When Monitored:
With the ignition on

•

Set Condition:
The FCM detects a short to ground condition

Possible Causes

RIGHT BRAKE LAMP FEED CIRCUIT SHORT TO GROUND

FRONT CONTROL MODULE

POWER DISTRIBUTION CENTER (PDC)

1.

INTERMITTENT CONDITION

Turn the ignition on.

With the DRBIII

T

, clear all FCM DTC’s.

Actuate the Stop Lamps.

With the DRBIII

T

, read the DTC information.

Does the DRBIII

T

read: Right Stop Lamp Output

Circuit Low?

Yes

>> Go To 2

No

>> The condition that caused the symptom is

currently not present. Inspect the related
wiring for a possible intermittent condition.
Look for any chafed, pierced, pinched, or
partially broken wires.

Perform BODY VERIFICATION TEST -
VER 1.
