FLUID COOLER

REMOVAL

1. Drain and siphon the power steering fluid.

2. Remove the underneath splash shield.

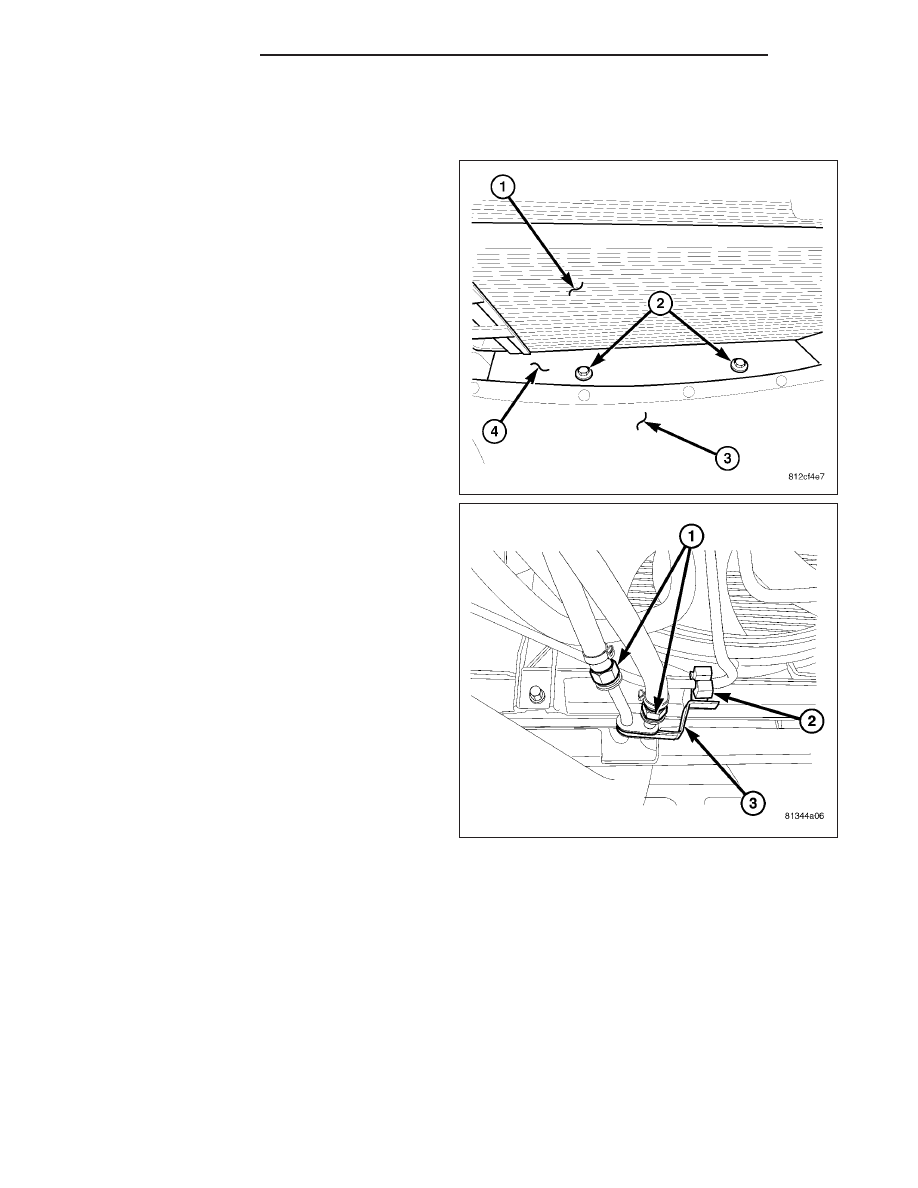

3. Remove the two bolts (2) from the air deflector (40

between the bumper (3) and A/C condensor (1).

4. Disconnect the return and supply hoses connected

to the power steering fluid cooler using special tool
8875.

5. Disconnect the hose mounting bracket (3).

19 - 98

PUMP - SRT-10

DR/DH

6. Remove the mounting bracket bolts (1) securing

the fluid cooler (3) to the brace.

7. Remove the fluid cooler (1) from the vehicle.

DR/DH

PUMP - SRT-10

19 - 99

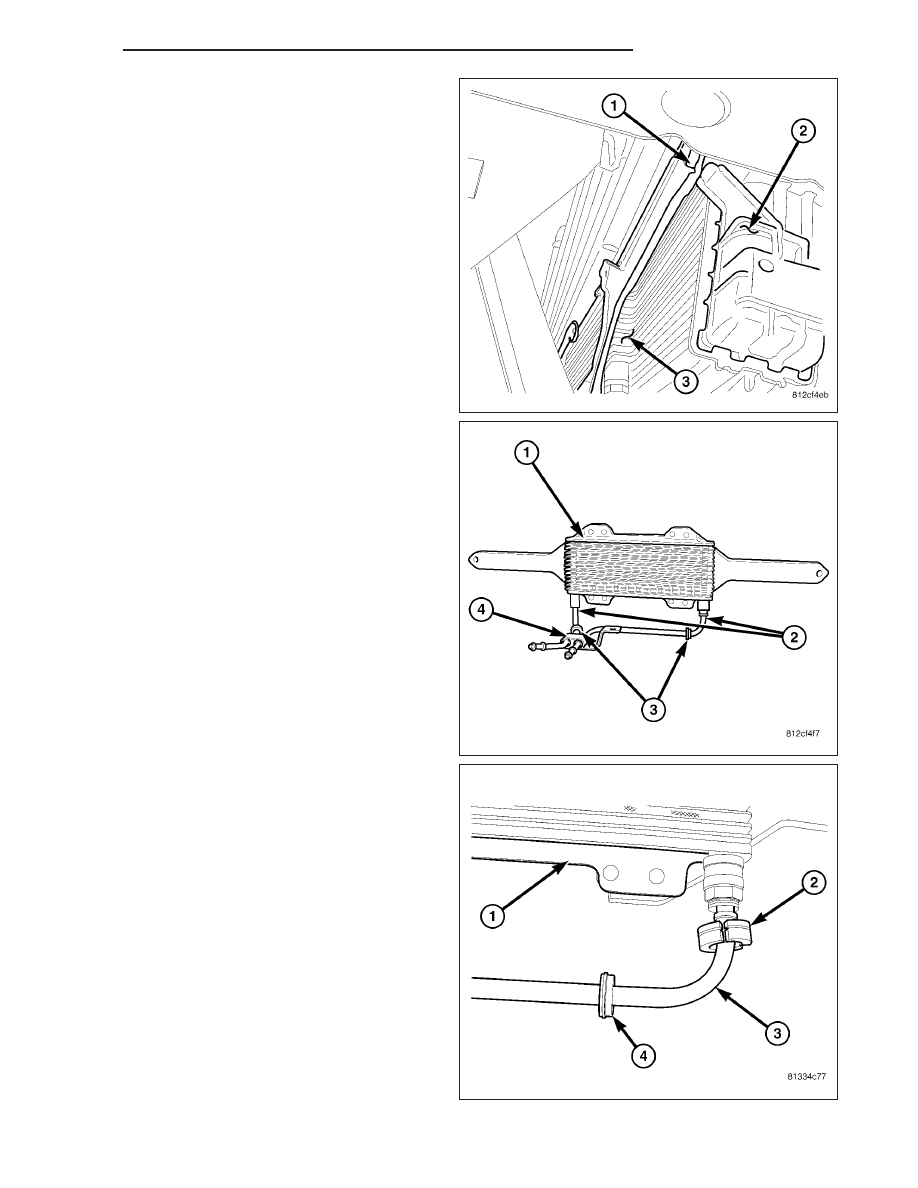

NOTE: If needed disconnect the power steering fluid cooler hoses (3) from the fluid cooler (1) using special
tool 8875 (2).

INSTALLATION

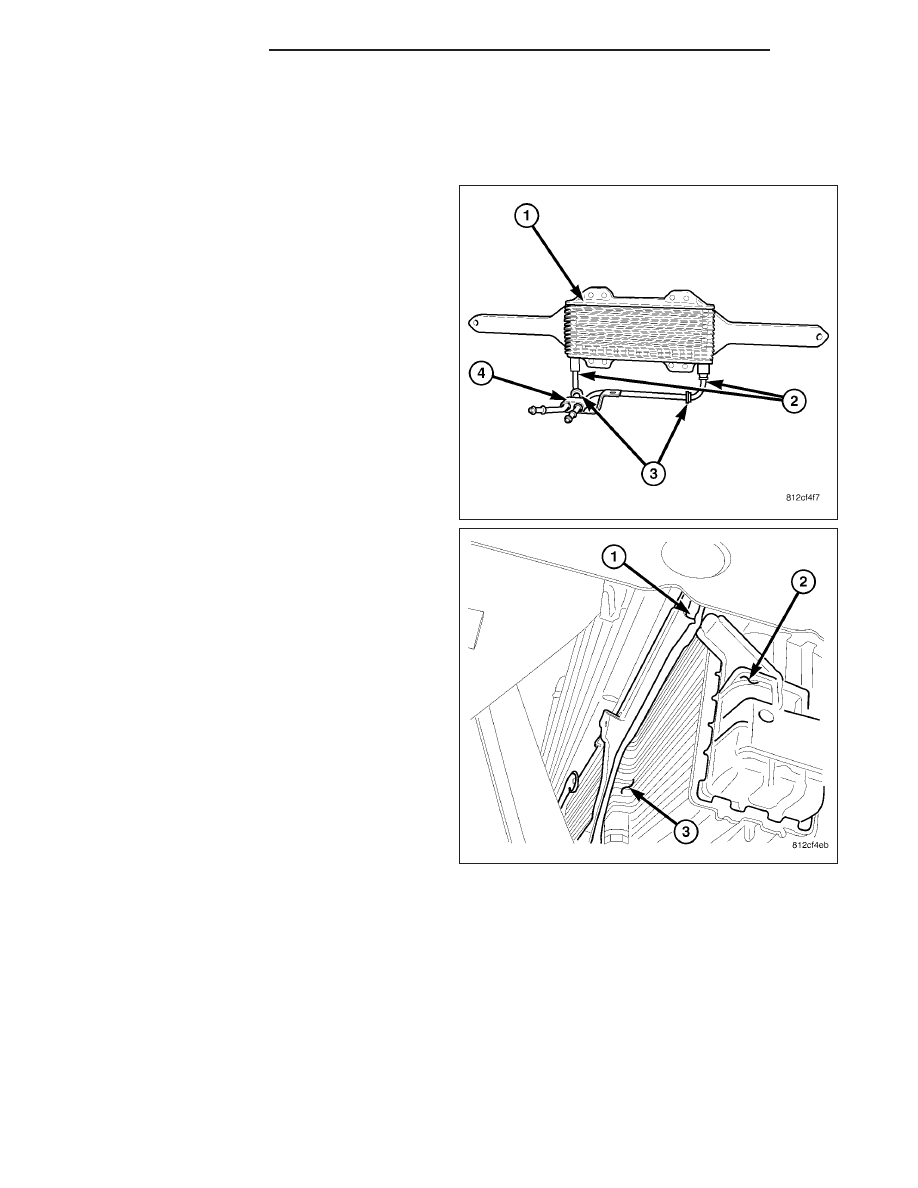

1. Install the fluid cooler (1) to the vehicle.

2. Install the mounting bracket bolts (1) securing the

fluid cooler (3) to the brace.

19 - 100

PUMP - SRT-10

DR/DH

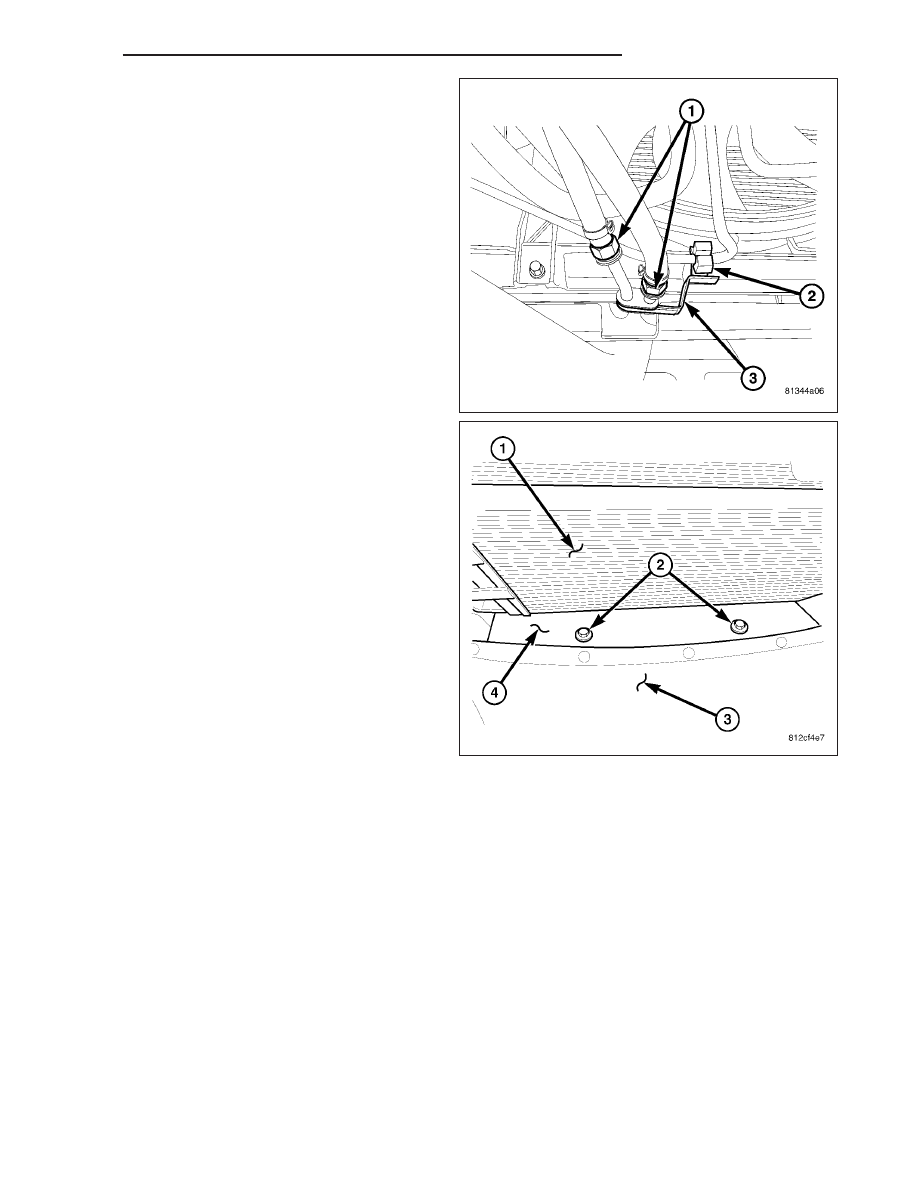

3. Reconnect the quick connect fitting (1) to the return

and supply hoses to the power steering fluid cooler.

4. Install the hose retaining bracket (3).

5. Install the air deflector shield (4).

6. Install the lower front air deflector.

7. Refill the power steering fluid (Refer to 19 -

STEERING/PUMP - STANDARD PROCEDURE).
