Chrysler Stratus Convertible. Manual — part 358

Fig.

6

2.0L–2.4L

Engine

Generator

and

A/C

Compressor

JX

8W - 90 CONNECTOR/GROUND LOCATIONS

8W - 90 - 11

DESCRIPTION AND OPERATION (Continued)

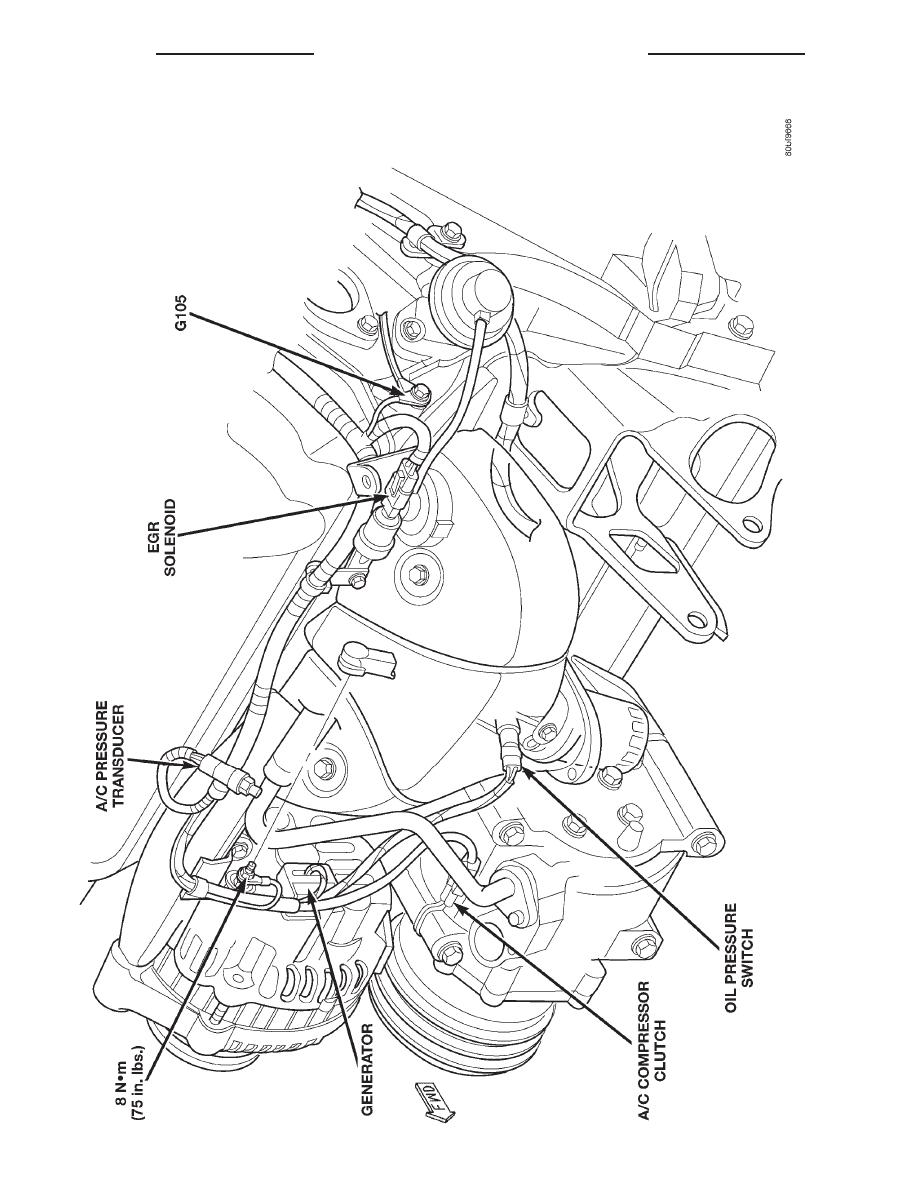

Fig.

7

2.0L–2.4L

Engine

Rear

Connectors

8W - 90 - 12

8W - 90 CONNECTOR/GROUND LOCATIONS

JX

DESCRIPTION AND OPERATION (Continued)

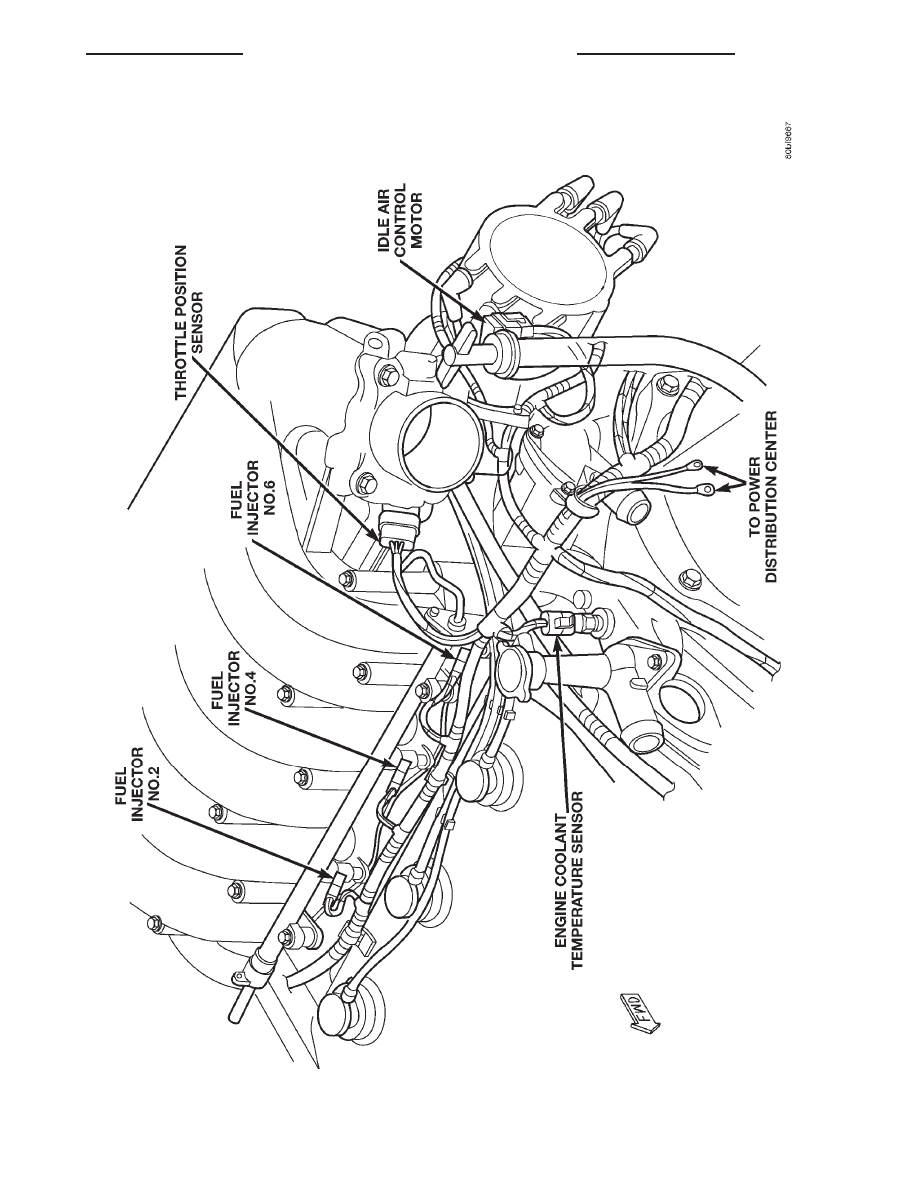

Fig.

8

2.5L

Engine

Front

Connectors

JX

8W - 90 CONNECTOR/GROUND LOCATIONS

8W - 90 - 13

DESCRIPTION AND OPERATION (Continued)

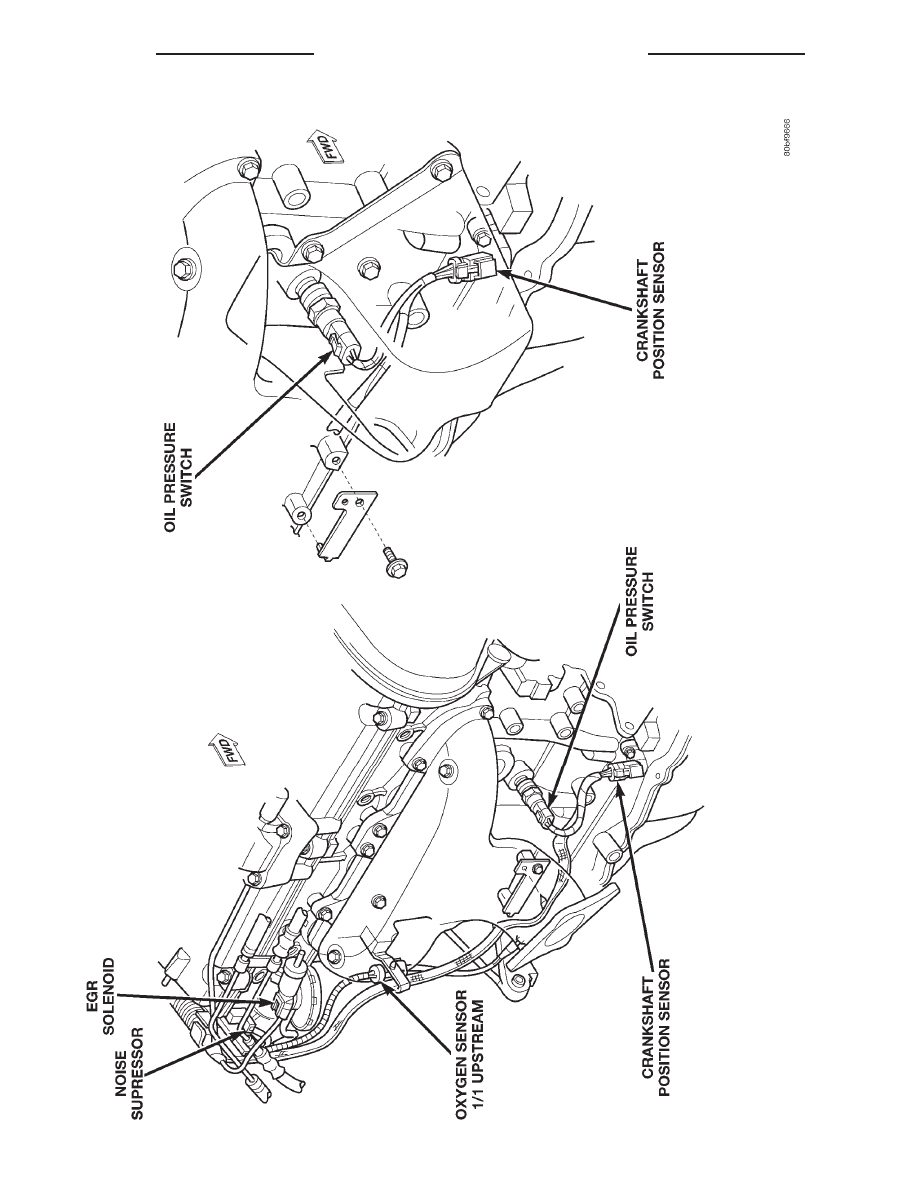

Fig.

9

2.5L

Engine

Generator

and

A/C

Compressor

8W - 90 - 14

8W - 90 CONNECTOR/GROUND LOCATIONS

JX

DESCRIPTION AND OPERATION (Continued)
