REMOVAL AND INSTALLATION

LEAK DETECTION PUMP

REMOVAL

(1) Release fuel pressure, Refer to Fuel System

Pressure Release Procedure in the Fuel Delivery sec-
tion.

(2) Disconnect battery cable (Fig. 9).

(3) Raise vehicle and support.

Fig. 7 Fuel Tank Assembly

Fig. 8 EVAP System

1 – EVAP CANISTER
2 – LDP
3 – LDP FILTER
4 – ORVR VALVE

Fig. 9 Battery Cable

1 – AUXILIARY JUMPER TERMINAL
2 – LEFT STRUT TOWER
3 – AIR CLEANER HOUSING

Fig. 10 EVAP System

1 – LDP
2 – EVAP CANISTER
3 – FUEL TANK

JX

EMISSION CONTROL SYSTEMS

25 - 27

(4) Drain fuel tank, refer to Draining Fuel Tank in

the Fuel Delivery section (Fig. 11).

(5) Loosen and remove fuel filler tube from fuel

tank (Fig. 12).

(6) Disconnect fuel line (Fig. 13).

(7) Position transmission jack under fuel tank

assembly.

(8) Remove fuel tank straps bolts. Passenger side

first.

(9) Lower fuel tank and remove the purge line and

vent line (Fig. 14).

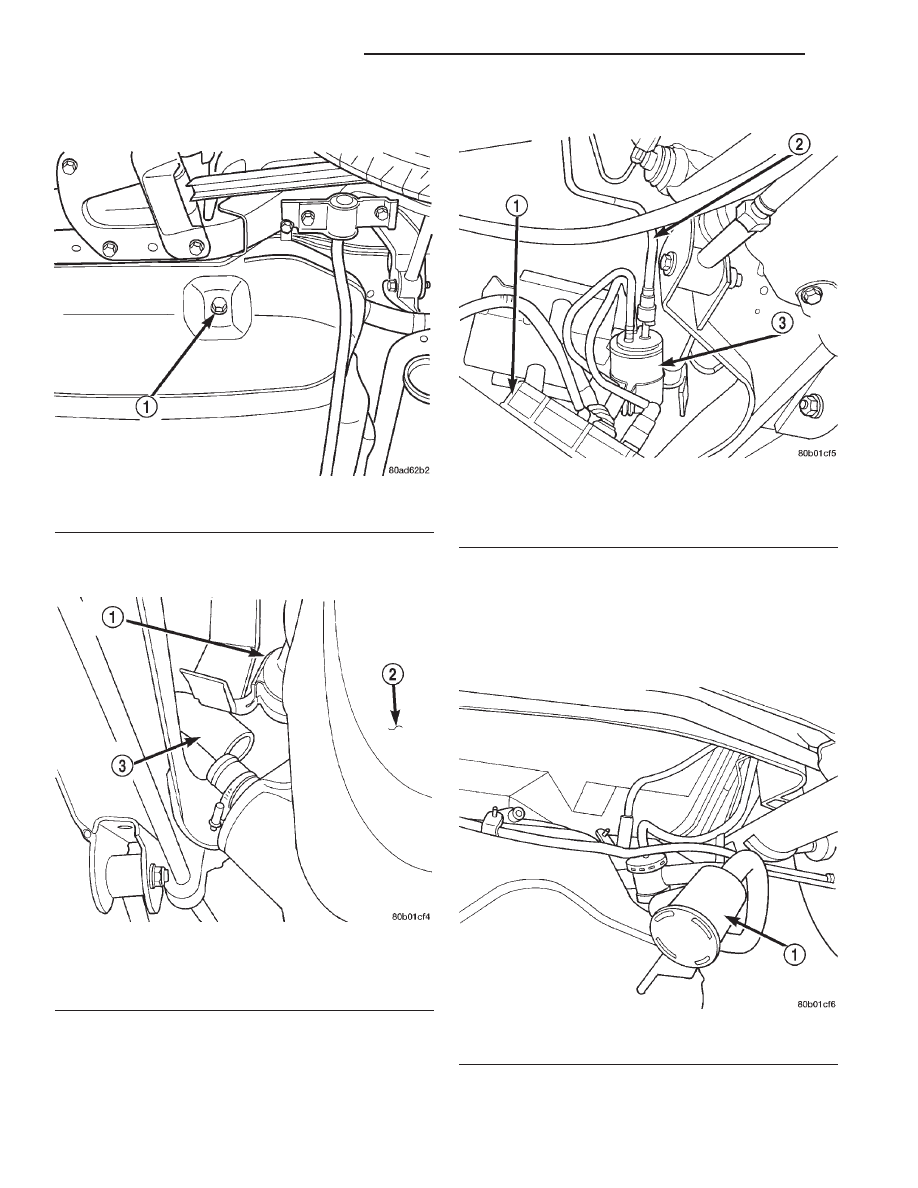

Fig. 11 Fuel Tank Drain

1 – FUEL TANK DRAIN

Fig. 12 Fuel Filler Tube

1 – FUEL FILTER
2 – FUEL TANK
3 – FUEL FILLER TUBE

Fig. 13 Fuel Line

1 – FUEL PUMP MODULE
2 – FUEL LINE
3 – FUEL FILTER

Fig. 14 Evap Components

1 – LDP FILTER

25 - 28

EMISSION CONTROL SYSTEMS

JX

REMOVAL AND INSTALLATION (Continued)

(10) Remove hoses from EVAP canister.
(11) Disconnect electrical connector for Leak Detec-

tion Pump (LDP).

(12) Remove push pin from bracket for EVAP can-

ister (Fig. 15).

(13) Remove bracket and Leak Dectection Pump.
(14) Remove LDP from bracket.

INSTALLATION

(1) Install LDP onto bracket.
(2) Install bracket and LDP onto fuel tank assebly.
(3) Install EVAP canister to bracket install push

pin.

(4) Install hoses and lines.
(5) Raise the fuel tank on the transmission stand.
(6) Connect the purge and vent lines.
(7) Connect LDP and fuel pump electrical connec-

tor.

(8) Raise tank into position and install tank

straps.

(9) Install the fuel filler tube and tighten the

clamp.

(10) Lower vehicle.
(11) Connect the battery cable.
(12) Fill fuel tank. Use the DRB scan tool to pres-

surize the fuel system. Check for leaks.

EVAP CANISTER

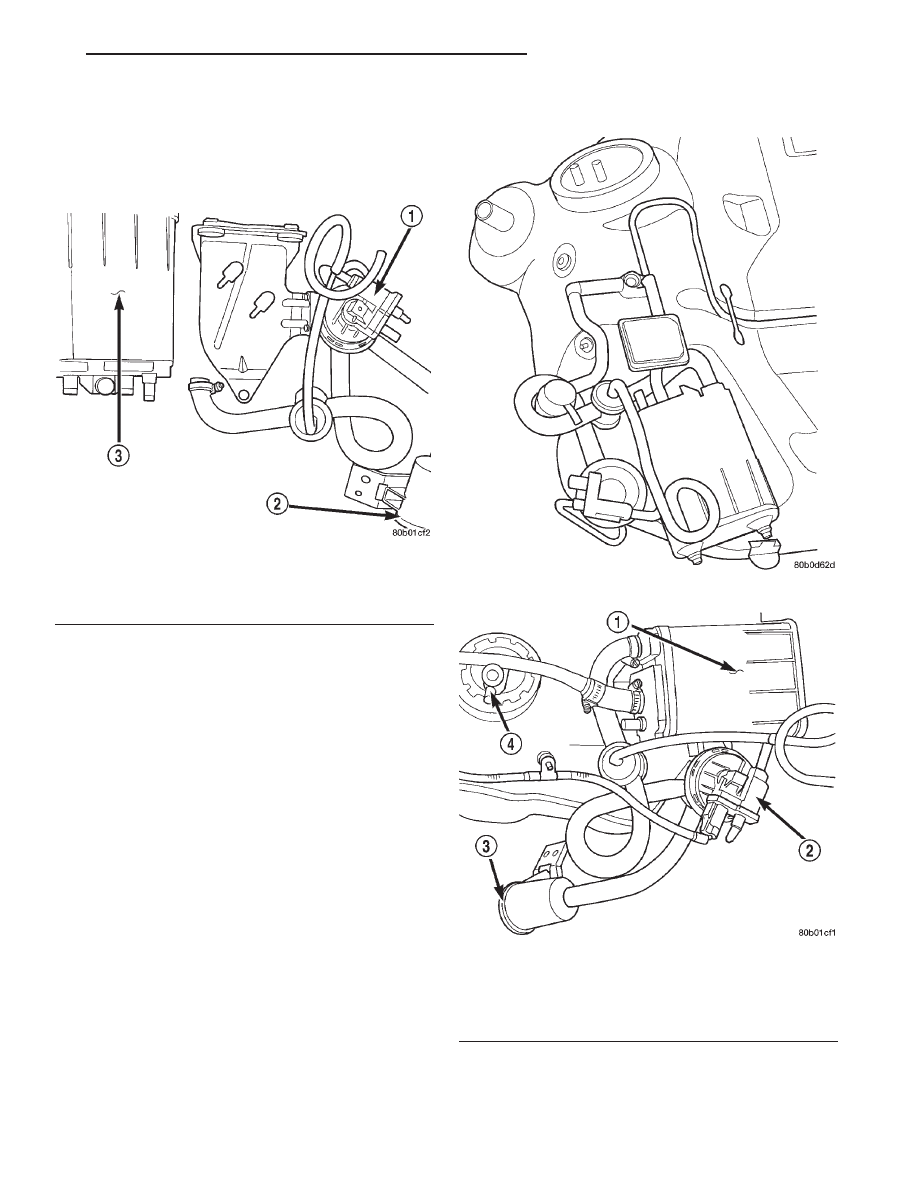

Fig. 15 LDP and EVAP Canister

1 – LDP
2 – LDP FILTER
3 – EVAP CANISTER

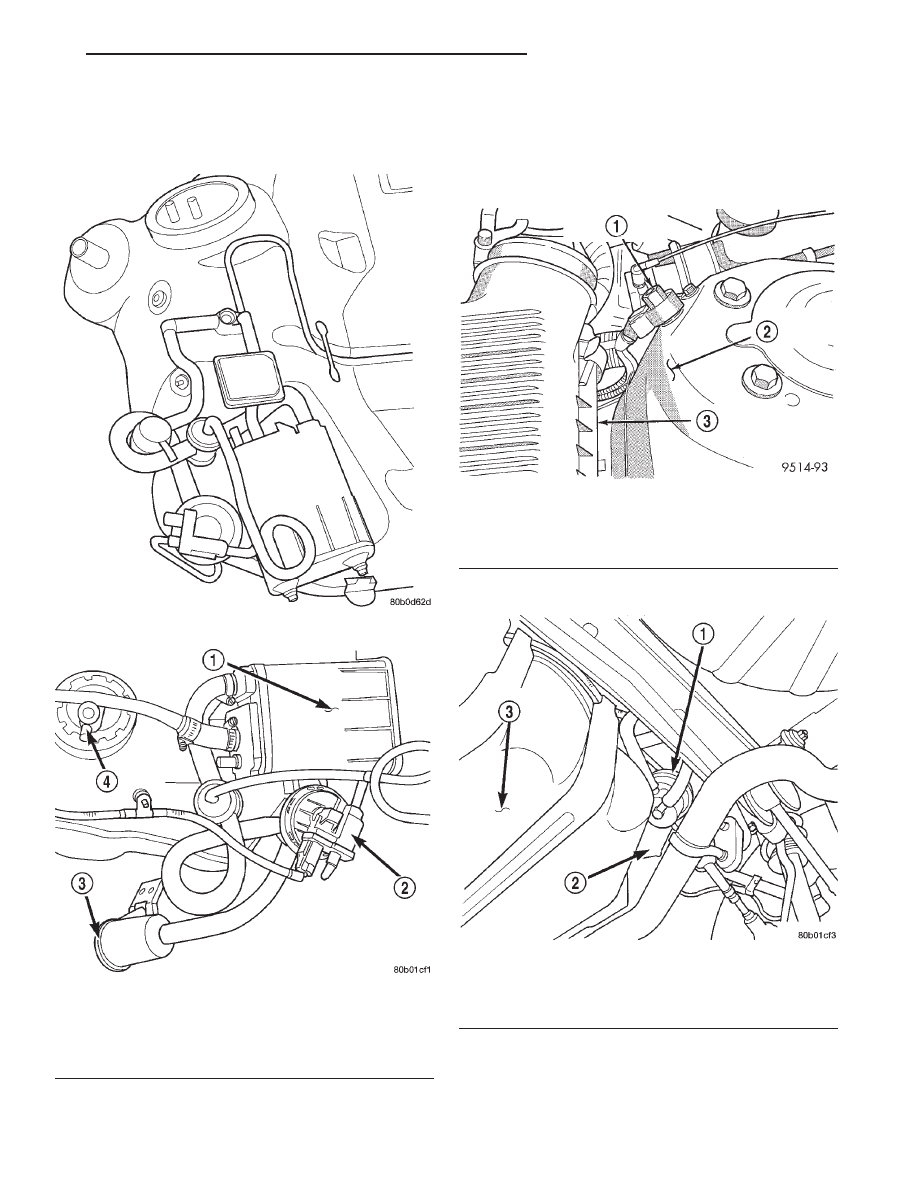

Fig. 16 Fuel Tank Assembly

Fig. 17 EVAP System

1 – EVAP CANISTER
2 – LDP
3 – LDP FILTER
4 – ORVR VALVE

JX

EMISSION CONTROL SYSTEMS

25 - 29

REMOVAL AND INSTALLATION (Continued)

REMOVAL

(1) Release fuel pressure, Refer to Fuel System

Pressure Release Procedure in the Fuel Delivery sec-
tion.

(2) Disconnect battery cable (Fig. 18).

(3) Raise vehicle and support.

(4) Drain fuel tank, refer to Draining Fuel Tank in

the Fuel Delivery section (Fig. 20).

(5) Loosen and remove fuel filler tube from fuel

tank (Fig. 21).

(6) Disconnect fuel line (Fig. 22).
(7) Position transmission jack under fuel tank

assembly.

(8) Remove fuel tank straps bolts. Passenger side

first.

(9) Lower fuel tank and remove the purge line and

vent line (Fig. 23).

(10) Remove hoses from EVAP canister.
(11) Disconnect electrical connector for Leak Detec-

tion Pump (LDP).

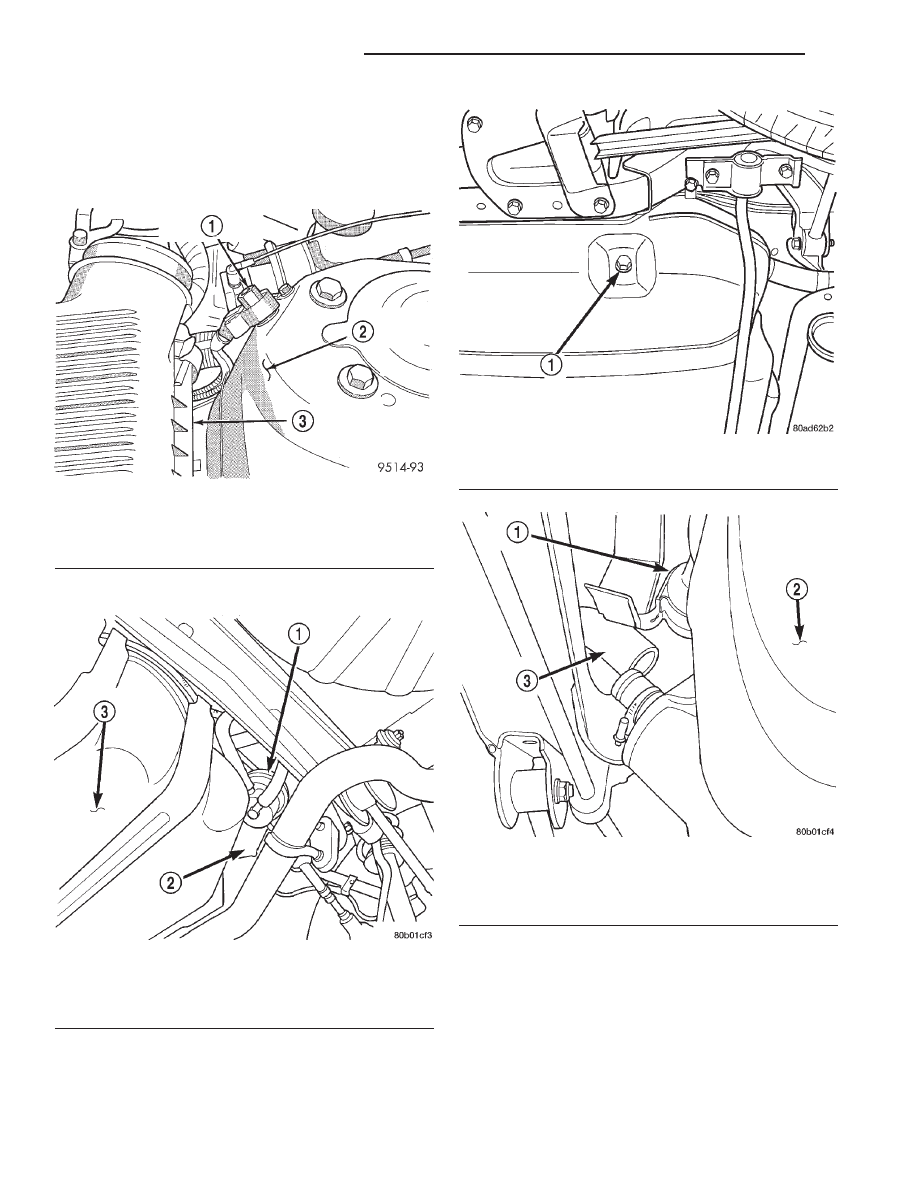

Fig. 18 Battery Cable

1 – AUXILIARY JUMPER TERMINAL
2 – LEFT STRUT TOWER
3 – AIR CLEANER HOUSING

Fig. 19 EVAP System

1 – LDP
2 – EVAP CANISTER
3 – FUEL TANK

Fig. 20 Fuel Tank Drain

1 – FUEL TANK DRAIN

Fig. 21 Fuel Filler Tube

1 – FUEL FILTER
2 – FUEL TANK
3 – FUEL FILLER TUBE

25 - 30

EMISSION CONTROL SYSTEMS

JX

REMOVAL AND INSTALLATION (Continued)
