DOOR LATCH ADJUSTMENT

(1) Insert a suitable allen wrench through elon-

gated slot in door end frame and loosen bolt 1/2 to
one full turn (Fig. 87).

(2) Cycle outside door handle twice.
(3) Tighten adjusting screw to 3.4 N·m (30 in. lbs.)

torque.

(4) Verify latch operation.

SPECIAL TOOLS

BODY

Fig. 87 Door Latch Adjustment

1 – DOOR
2 – SLOT
3 – ALLEN WRENCH

STICK, TRIM C 4755

JX

BODY

23 - 73

ADJUSTMENTS (Continued)

SPECIFICATIONS

TABLE OF CONTENTS

page

page

SPECIFICATIONS

BODY LUBRICATION SPECIFICATIONS. . . . . . . . 74
WELD LOCATIONS . . . . . . . . . . . . . . . . . . . . . . . 75
STRUCTURAL ADHESIVE LOCATIONS . . . . . . . 112

SEALER LOCATIONS . . . . . . . . . . . . . . . . . . . . . 124
BODY GAP AND FLUSH MEASUREMENTS . . . . 134
BODY OPENING DIMENSION . . . . . . . . . . . . . . 135
TORQUE SPECIFICATIONS . . . . . . . . . . . . . . . . 136

SPECIFICATIONS

BODY LUBRICATION SPECIFICATIONS

LUBRICATION REQUIREMENTS

Body

mechanisms

and

linkages

should

be

inspected, cleaned, and lubricated, as required, to
maintain ease of operation and to provide protection
against rust and wear. When performing other under
hood services, the hood latch release mechanism and
safety catch should be inspected, cleaned, and lubri-
cated. During the winter season, external door lock
cylinders should be lubricated to assure proper oper-
ation when exposed to water and ice.

Prior to the application of any lubricant, the parts

concerned should be wiped clean to remove dust and
grit. If necessary, a suitable solvent can be used to
clean the item to be lubricated. After lubricating a
component, any excess oil or grease should be
removed.

LUBRICANT APPLICATION

DOOR LOCK CYLINDERS

(1) Apply a small amount of lubricant directly into

the lock cylinder.

(2) Apply a small amount of lubricant to the key.
(3) Insert key into lock cylinder and cycle the

mechanism from the locked to the unlocked position.

NOTE: Do not add more lubricant.

(4) Cycle the lock cylinder mechanism several

times to allow the lubricant to flow throughout the
cylinder.

(5) Wipe all lubricant from exterior of lock cylinder

and key.

ALL OTHER BODY MECHANISMS

(1) Clean component as described above.
(2) Apply specified lubricant to all pivoting and

sliding contact areas of component.

LUBRICANT USAGE

ENGINE OIL

• Hood Hinges – Pivot Points

• Decklid Hinges

MOPAR

T

SPRAY WHITE LUBE OR EQUIVALENT

• Door Check Straps

• Decklid Prop Pivots

• Ash Receiver

• Parking Brake Mechanism

• Sliding Seat Tracks

• Decklid Latch

MOPAR

T

Multipurpose GREASE OR EQUIVALENT

• All Other Hood Mechanisms

• Door Hinges – Hinge Pin and Pivot Contact

Areas

MOPAR

T

LOCK CYLINDER LUBRICANT OR

EQUIVALENT

• Door Lock Cylinders

• Decklid Lock Cylinder

23 - 74

BODY

JX

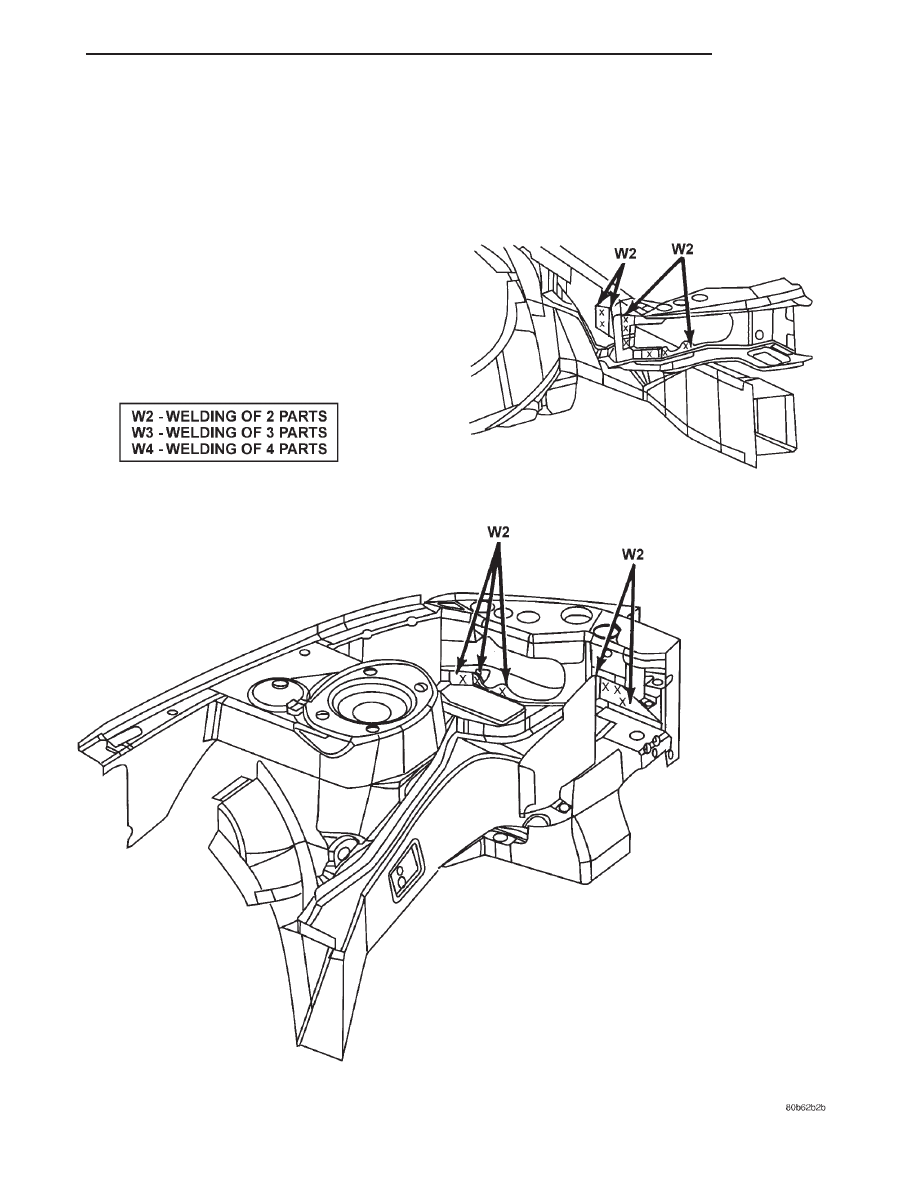

WELD LOCATIONS

HEADLAMP AND RADIATOR SUPPORTS

JX

BODY

23 - 75

SPECIFICATIONS (Continued)

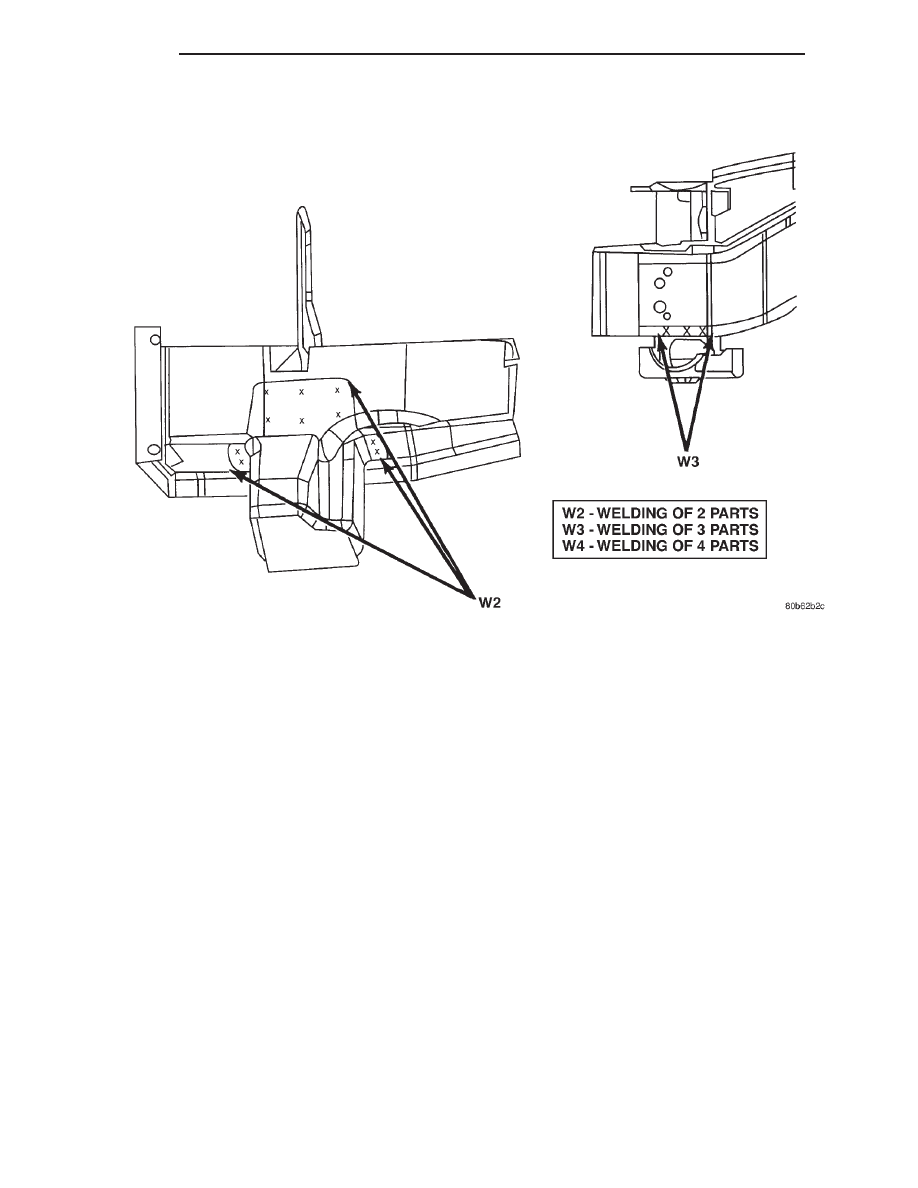

HEADLAMP AND RADIATOR SUPPORTS

23 - 76

BODY

JX

SPECIFICATIONS (Continued)
